Latest MTU engines on display in New Orleans

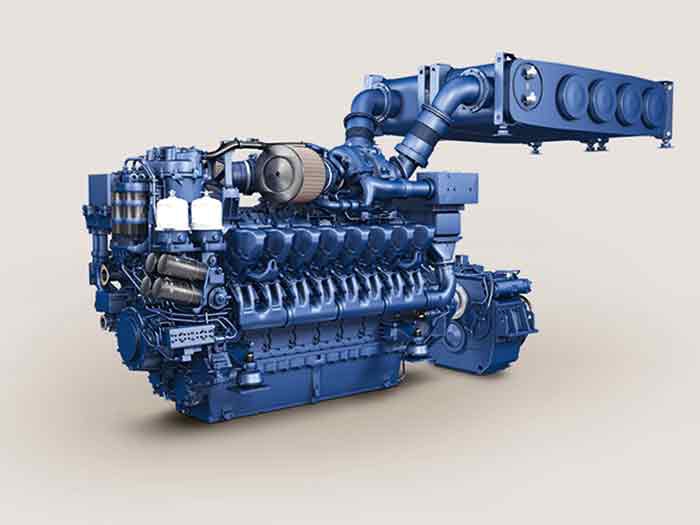

MTU Series 4000 with SCR: Customers benefit from a perfectly integrated concept for IMO Tier III comprising an MTU drive and SCR system which is compact and which offers an excellent power-to-weight ratio. Two different SCR systems are being offered so that, depending on the installation space, the customer can choose between one cubic box or two flat boxes, as pictured here

NOVEMBER 30, 2016 — Rolls-Royce is presenting its latest MTU-branded propulsion systems for commercial vessels and offshore shipping at this week’s International Workboat Show in New Orleans.

Center-stage on the MTU stand are improved diesels meeting IMO III and EPA Tier 4 requirements. These have already racked up more than 4,000 hours of runtime on MTU’s test stands in Friedrichshafen, Germany, and in Aiken, South Carolina. MTU will be supplying them from 2018 as primary propulsion systems for tugboats, ferries and supply vessels, and also as gensets for supplying electrical power to ships and platform installations.

Improvements to the engines’ turbocharging, combustion process and injection systems ,used in combination with the new MTU SCR unit, reduce nitric oxide emissions by 75% compared to IMO II, and particle emissions by 65% compared to EPA 3. A separate diesel particulate filter is not required.

NEW MTU GAS ENGINE

MTU’s new 16-cylinder gas engine is based on the tried-and-tested MTU 16V 4000 M63 workboat diesel and will be marketed with a power range of 1,500 to 2,000 kW from 2018. An 8-cylinder version is to follow, with a power range of 750 to 1,000 kW.

The new gas engine is especially well-suited to tugboats, ferries, push boats and special purpose vessels such as research craft.

MTU gas engines come with multi-point gas injection, variable combustion pressure control and improved turbocharging. The combustion design concept ensures efficient use of fuel and enables IMO III emission standards to be met without additional exhaust aftertreatment. A compact, built-on oxidising catalytic converter (oxi-cat) is used to achieve EPA Tier 4 standards. The jacketed design allows the engine room to be fitted out in the same way as for a diesel engine.

Real-life piloting maneuvers have already been simulated on the test stands, showing the engine to have the fast acceleration characteristics of a diesel. The 3,600 hours of operation already racked up on the test stands have shown that the gas engine is up there with the Series 4000 diesel in terms of reliability.

In 2018 Rolls-Royce will deliver the first certified MTU gas engines for commercial marine applications

IRONMEN

Also on show in New Orleans this week is a cutaway model of the MTU Ironmen 8V 4000 workboat engine – ideal for powering harbour tugboats, fire-fighting vessels, ferries and river barges.

Certified to EPA Tier 3 emissions requirements without exhaust after treatment, the Series 4000 Ironmen engines are available in 8, 12 and 16-cylinder configurations. They are to power diesel-mechanical and diesel-electric propulsion systems, onboard power generators and MTU hybrid drive systems. Used as part of diesel-mechanical applications, Ironmen engines meet power demands of 560 to 2,000 kW, with diesel-electric propulsion systems and onboard power generators producing between 650 and 2,000 kW.
