Incat Crowther to design 18 m dive support cats

Written by Nick Blenkey
image description

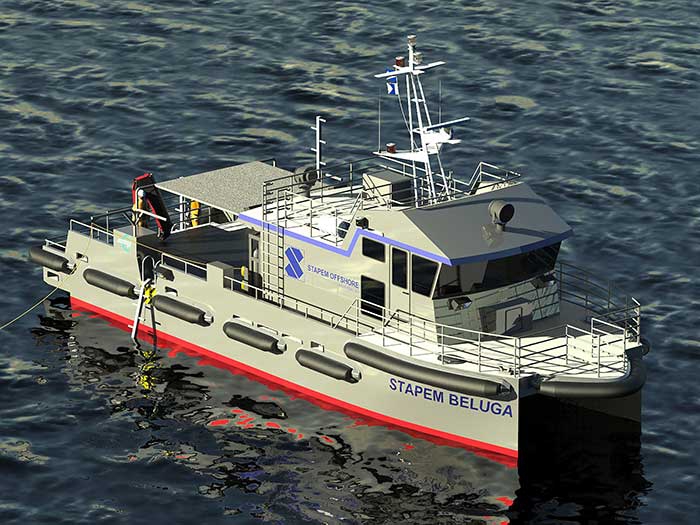

APRIL 24, 2017 — Incat Crowther has been awarded a contract by Legacy Marine Group of Port Elizabeth, South Africa, for the design of two new 18 meter catamaran dive support vessels to be built for Paris, France, headquartered Stapem Offshore for operation in coastal waters off Angola.

Designed specifically to support offshore dive operations, the vessels have an aft exterior deck that utilizes available space by combining deck lockers and racks for diving equipment storage with a covered dive prepping area. The vessel will have four fold-down dive ladders for water access, three swing davits for assisting divers, and one (1) equipment deck crane for additional operational support.

The bow configuration is designed for efficient interaction with personal transfer ladders of offshore FPSOs and platforms. Robust fendering is to be provided around the perimeter of the vessel to protect it from damage.

The main cabin has an SL3 diving operations panel for monitoring dives along with seating for fourteen persons.

Designed to achieve speeds in excess of 20 knots, the vessel will have two MAN D2876LE402 main engines, each coupled to a Hamilton HJ403 waterjet through ZF 360 gearboxes.

Electrical power for the vessel and all dive operations will be provided by two Fischer Panda generators.

Other items fitted below deck include a hydraulic power unit system with its own designated engine and pump, a Caviblaster system,both high pressure and low pressure compressors and storage systems.

Length Overall 18.7 m
Length Waterline 17.0 m
Beam Overall 6.0 m
Draft (hull) 1.16 m
Depth 2.5 m
Construction Marine Grade Aluminum
