Researchers figure out how to stop propellers singing

Written by Nick Blenkey
image description

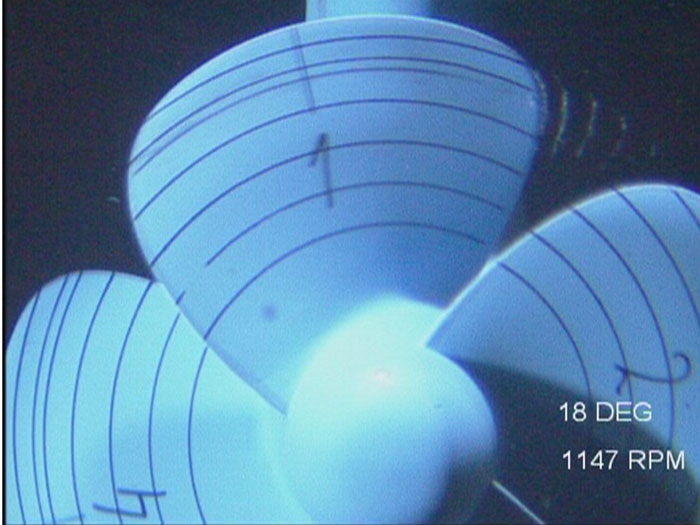

Wärtsilä and City University London have succeeded in identifying the specific design parameters that create the risk of "singing" propellers

MARCH 4, 2016 —A joint research project carried out by Wärtsilä and City University London has succeeded in identifying the specific design parameters that create the risk of “singing” propellers.

“Singing” is a rare, but annoying, problem that manifests itself as a strong tonal noise originating from the propeller, with a negative effect to onboard comfort levels.

The problem has long been recognized in the marine industry. The general perception has been that it occurs when the frequency of the propeller blades’ vibration mode coincides with the frequency of the hydrodynamic excitation forces at the trailing edge of the blades. The current research indicates that there is more complexity and sensitiveness involved.

“Our research has shown that the ‘singing’ phenomenon can be controlled by selecting the proper main parameters of the propeller blades, by careful attention to the flexural modes of the propeller blades, and by careful attention to the specific geometry at the trailing edge of the blades,” says Arto Lehtinen, Vice President, Propulsion, Wärtsilä Marine Solutions. “It has shown that all these aspects are interacting and can prevent the ‘singing’ of propellers.”

Finite Element Method (FEM) analysis tools have been used in the identifying of the risk indicators related to the main propeller design parameters. By correctly adjusting these parameters, the response side risks can be minimized. Similarly, Computational Fluid Dynamic (CFD) technology was used to analyze the vortex shedding behavior of the trailing edge design. The results indicate that a proper design of the trailing edge details reduces the shedding and, therefore, also the excitation forces.

Wärtsilä has used CFD in its hydrodynamic design processes for some 20 years.Vessels at risk for “singing” are identified in the design process. Along with the existing Wärtsilä propeller design features, notably optimum efficiency, strength, and limited cavitation and pressure pulses, the avoidance of “singing” has now been added as a standard Wärtsilä design feature.

The findings from the research project have been incorporated into the company’s OPTI-Design, which was introduced as a new state-of-the-art design concept in 2014, offerings fuel savings of up to 4 percent and highly reliable full scale performance predictions.
