Hull optimization promises big fuel savings for expedition cruise duo

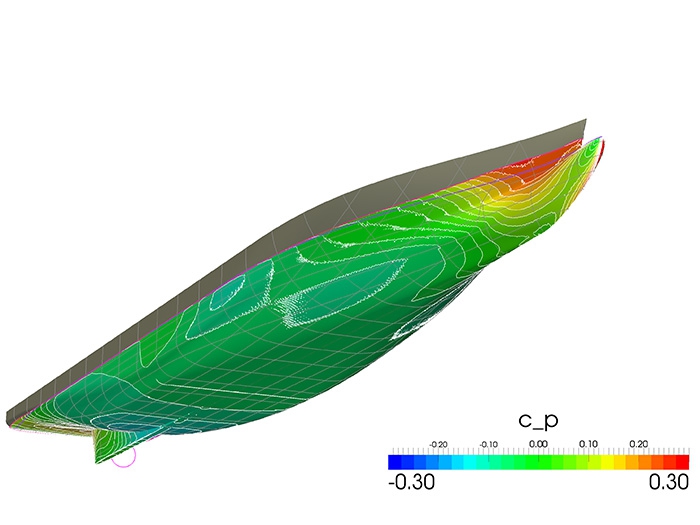

Pressure distribution on the optimized hull

NOVEMBER 14, 2017 — Two 138 m, 240 passenger expedition cruise ships under construction for Hapag Lloyd cruises are projected to see fuel savings of over 10 percent as a result of changes made as a result of working with DNV GL.

The hulls of the two vessels, Hanseatic Nature and Hanseatic Inspiration, are being built by Vard’s shipyard in Tulcea, Romania, with deliveries scheduled from the shipbuilder’s Langsten yard in Norway in the first and fourth quarters of 2019.

Brought in during the initial design and conception phase, DNV GL experts first created and explored more than 100,000 hull variations for the vessels. They worked to give Hapag-Lloyd Cruises and Vard an idea of the technical possibilities of various hull forms and how the interactions between the hull form, the initial general arrangement and stability requirements would impact fuel consumption.

“The design concept for the two new ships was ‘inspired by nature’,” says Dr. Henning Brauer, Head of New Builds, Hapag-Lloyd Cruises. “The vessel interiors have been created to reflect the environments our passengers are experiencing inside the ships. But these are also sensitive environments, so reducing the environmental impacts of our vessels is an integral part of the design concept. Working with DNV GL has allowed us to significantly reduce fuel consumption, which also decreases our overall emissions.”

“We are very pleased to have been able to exceed Hapag-Lloyd Cruises’ expectations and offer an optimization solution that demonstrates that efficiency and sustainability can go hand in hand,” says Knut Ørbeck-Nilssen, CEO DNV GL – Maritime. “These results show that by bringing greater computing power and smart software to the ship design process we can help to unlock efficiencies for our customers.”

After the initial assessment, the efficiency of the hull form was optimized within the given constraint set using DNV GL’s unique formal optimization approach. During this phase, another 10,000 hull designs were analyzed, with the most promising candidates undergoing high fidelity computational fluid dynamic (CFD) analysis to confirm the results. Finally, the stern was optimized for passenger comfort by minimizing impact from slamming.

“Because these ships will have the highest ice class possible for passenger vessels, PC6, fuel consumption is an essential factor in their economic feasibility,” adds Juryk Henrichs, Senior Project Engineer, DNV GL – Maritime. “With roughly 7,000 CPUs doing the heavy lifting, our unique form-parametric hull model was able to identify the optimal design to meet Hapag-Lloyd Cruises’ specifications.”

Wave elevation and pressure distribution on the optimized hull
