Leading maritime energy storage system manufacturer Corvus Energy is teaming with Finnish-based Yaskawa Environmental Energy / The Switch. Under a three year agreement, Corvus will be the Finnish company’s preferred partner in the development of its smart Battery Short-Circuit Limiter (BSCL) protection device for large-scale battery solutions and advanced DC power distribution.
SOLVING THE SCALABILITY CHALLENGE
Connecting high-energy-content batteries to one electrical system carries a high risk of releasing a massive amount of short-term current that can result in system damage. Consequently, battery packs have to be split between several DC-hubs to handle the amount of energy. The more batteries you hook up, the more DC-hubs would be required – theoretically up to eight for a 20 MWh ESS. The innovation that the BSCL brings is to limit short-term current from each set of batteries, immediately blocking the short-circuit system. This allows more batteries to be connected to the electrical system and fewer DC-Hubs, making the entire system more compact and representing a significant financial saving. The space saving in terms of cabinet length means less CAPEX while at the same time promoting safety, efficiency and reliability.
“The BSCL is essentially an ultra-fast, semi-conductor-based protection device that operates based on actual system measurements with microsecond response,” says Teemu Heikkilä, head of product line, converters at Yaskawa Environmental Energy / The Switch. “It opens the DC electrical circuit by disconnecting a battery set in the event of a fault anywhere in the system, preventing the battery set from discharging itself. Such a sudden release of energy could result in major damage and, in the worst case, an electrical fire. BSCL minimizes the risk by stopping the energy loss in microseconds.”
“From a technical perspective, the market hasn’t yet come to grips with this connectivity challenge,” continues Heikkilä. “Class rules, which were primarily designed for AC/DC systems, are lagging behind the rapid pace of technology in DC power distribution. The BSCL is the first product fit for purpose with battery systems that are getting bigger almost by the day. Its key benefit, mirroring the electrification trend where the larger the ESS the bettery, is that you can increase the energy content of the ESS while minimizing the number of parallel systems required. In principle, implementing BSCL means you still only need two DC-hubs for an ESS up to 40 MWh, so the savings grow in tandem with the size of the battery package.”
COMPLEMENTING CORVUS ENERGY’S LARGE BATTERY SYSTEM INSTALLATIONS

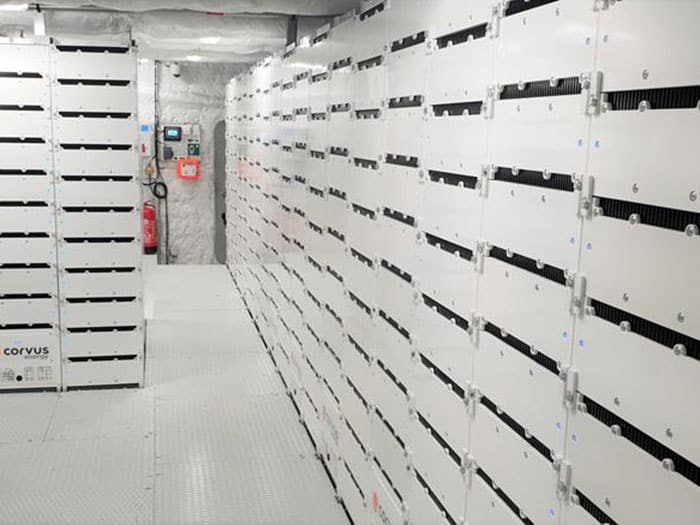

While battery systems on board ships until now have been limited to below 10 MWh installations, future projects are increasing to many times this size. The BSCL device works for the entire Corvus ESS portfolio, including Corvus Orca, but is particularly suited to Corvus Energy’s Blue Whale ESS, which is designed to meet large operational energy demands at a cost-effective kWh price. The Blue Whale system has been specifically developed for large battery installations ranging from 10 MWh and upwards. Typical vessel applications include cruise ships as well as large ferries, yachts, merchant ships, inland vessels and workboats.

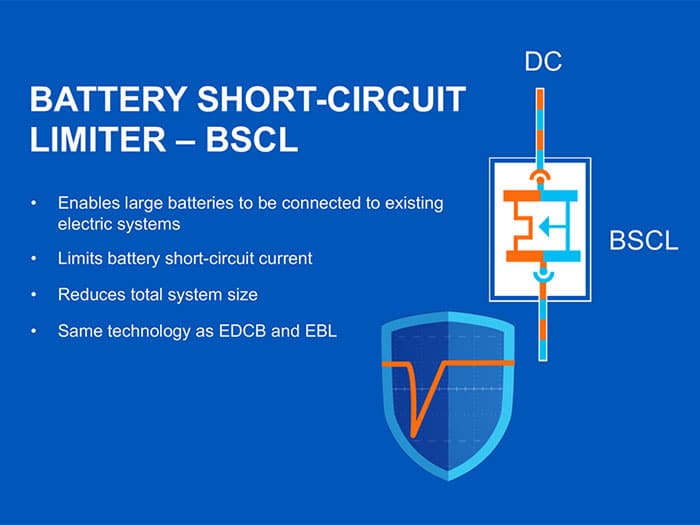

The Battery Short-Circuit Limiter (BSCL) is a standalone product to be placed close to the batteries and between drives. The space saving it generates complements Blue Whale’s low weight and low total system volume. The BSCL can also be retrofitted to existing systems for extra security.
The BSCL is closely related to Yaskawa Environmental Energy / The Switch’s recently launched Electronic Bus Link (EBL) and Electronic DC Breaker (EDCB) devices designed to guarantee selectivity and safety through ultra-rapid fault detection and disconnection, ensuring complete redundancy in DC power distribution for fully electric and hybrid vessels. Both devices are now standard building blocks in the company’s marine drive offering. They enable The Switch DC-hubs to perform at the highest standards of efficiency and reliability, delivering maximum system protection and ride-through capability.
