Jack-up to be converted to MOSS

Written by Nick Blenkey
image description

MARCH 29, 2016 —Houston headquartered William Jacob Management, Inc. (WJM) has secured its initial contract to complete the detailed engineering and design of its first Mobile Offshore Support Services Vessel: the MOSS V — a heavy-duty jack-up drilling rig, converted to a self-propelled vessel.

Northport Marine LLC will be the first client to receive delivery of the new concept vessel, scheduled for completion in first quarter 2018.

Potential applications include rigless plug and abandonment (P&A), construction support, floatel, storm damage repair, decommissioning, wireline, workover, support of a skid off rig and maintenance.

WJM will provide the engineering design and construction management for the conversion and refit of a candidate vessel, several of which have been identified.

By removing pre-existing drilling equipment from the top deck during the conversion, a 10,000-square-foot open deck serves to create a utility vessel that allows for the accommodation of a number of different services.

The equipment below deck (pumps and tanks) is left in place, for potential use in P&A applications.

Typically, a standard jack-up rig is equipped with two or three cranes with limited capacity of only 10 to 30 tons. The MOSS V adds a new heavy-duty 500-ton crane, which extends the vessel’s capability to comfortably handle platform maintenance, coiled tubing offloading, the decommissioning of platforms and the rigless P&A of wells.

The MOSS V hosts a large 85-person living quarters, which means it can also jack up next to a platform and be used as a floatel.

WJM says that the MOSS V is a far more robust vessel than smaller, lighter lift boats. While existing lift boats can only work up to a maximum of 200-feet water depth and cannot operate in heavy seas, the MOSS V is designed for 350 to 400-foot water depth capability, and can endure substantial adverse weather conditions due to its size and weight.

A 2,000-square-foot enclosed machine and welding shop is also located on the deck of the MOSS V. This means that workers can safely perform construction tasks for repairs in an environment shielded from the elements while offshore on the vessel. Another feature enhancing the safety of its workers is the inclusion of a helideck on the MOSS V. This means that workers can be safely transported on and off the vessel, eliminating the risks inherent with basket transfer of workers typically used with smaller lift boats.

Michael Duffy, president, William Jacob Management, said, “In the current industry climate, an increasing number of plug and abandonment and decommissioning projects are coming online in the GOM, and the MOSS V is currently the only vessel sufficiently equipped to fully serve this target region. For an extremely competitive day rate, the MOSS V offers a unique set of multi-functional characteristics, eliminating the need for clients to hire multiple expensive vessels to perform various tasks, and delivering significant time and cost savings offshore. The MOSS V is a self-propelled vessel, with all the advantages of a heavy, robust standard jack-up drilling rig, but with the added design benefits of self-propulsion, 10,000-square-foot deck space and ability to undertake a wider variety of work in deeper water. Its versatility makes the MOSS V a one-stop shop for a variety of offshore requirements.”

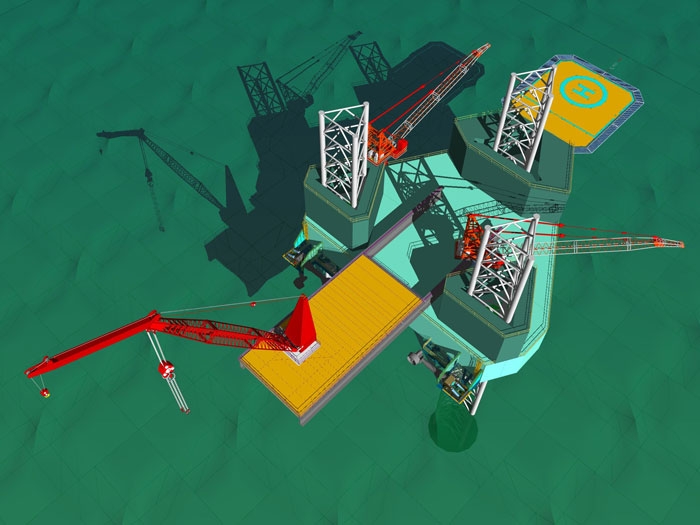

MOSS V computer model v2 700
