Stack them: Special delivery for Weeks Marine’s new barges

Written by Marine Log Staff
image description

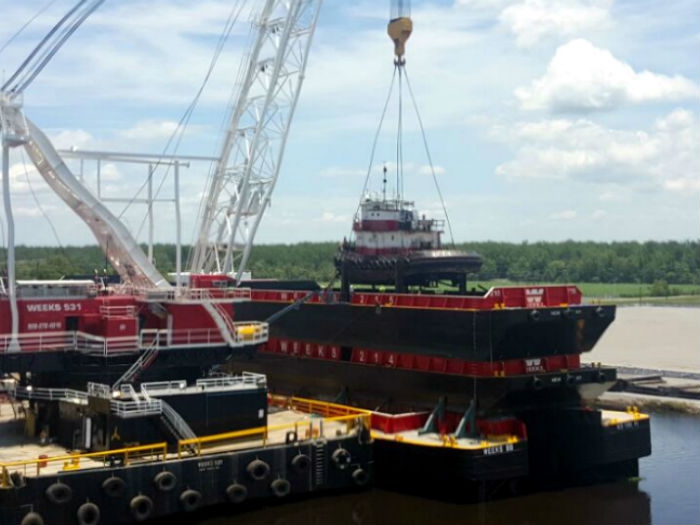

Tug George W being loaded onto double stack of barges for transport to Weeks Marine's facilities in New Jersey

JULY 14, 2017—After building eight new 150 ft x 40 ft x 12 ft sand scow barges to be built at a Gulf of Mexico shipyard, maritime construction company Weeks Marine, Inc., Cranford, NJ, was exploring the most economical way to transport them to its New Jersey facilities.

In engineering consultation with JMS Naval Architects, Essex, CT, Weeks decided to use an existing Weeks Marine Load Line deck barge, the Weeks 99, to carry four barges at-a-time (double-stacked) on her deck, secure them for ocean tow, and transport them from the Gulf of Mexico to New Jersey. The Weeks 99 is a converted oil tank barge measuring 300 ft by 72 ft x19 ft that had undergone modifications to increase its width to 72 ft.

JMS provided design and engineering services to Weeks Marine for transporting the scow barges onboard the Weeks 99 deck barge. JMS performed calculations and developed drawings for a shipping, blocking, and sea fastening plan and to support the required modifications to the Weeks 99 to support and secure the four new sand scow barges to the Weeks 99 deck. Modifications included an analysis of using her new bin walls to support the sand scows during shipping.

JMS performed similar calculations and drawings to carry, as additional cargo, the Weeks Marine’s 54 ft x 22 ft tug George W on top of the second-tier of sand scow barges.

JMS updating the stability documents for the Weeks 99 following modifications to also allow it to be used as a scow barge after the transportation of the smaller scows and tug was completed.slide WeeksMarine2

JMS performed a deadweight survey, stability analysis, and submitted the results to ABS for review and issuance of a new stability letter for the Weeks 99.

JMS also performed calculations to support modifying and converting the Weeks 99 from a deck barge to a hopper barge.

The Weeks 99, carrying four of the new sand scow barges and the Weeks Marine tug George W, will be departing the Gulf of Mexico headed for Weeks Marine’s New Jersey facilities this month.
