For many shipowners, it could make EGR —rather than SCR (selective catalytic reduction) — the optimum means of meeting the NOX reduction requirements set by EPA Tier 4 and IMO Tier III requirements.

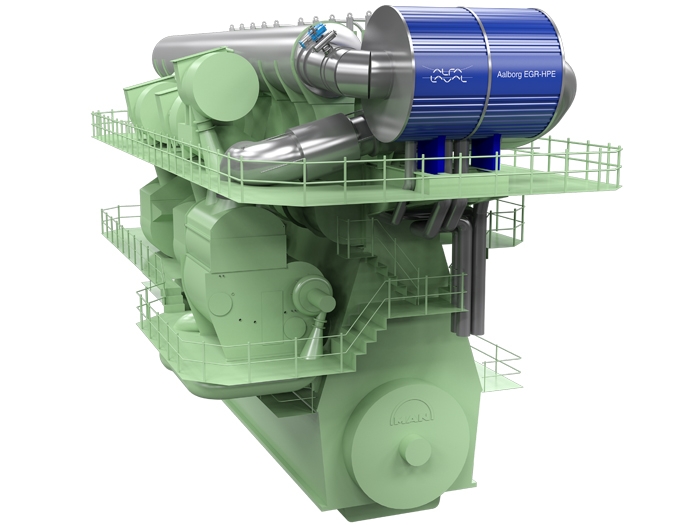

Developed by Alfa Laval in close cooperation with MAN Diesel & Turbo, the Aalborg EGR-HPE is a revolutionary new economizer enclosed in a pressure casing. Placed in-line ahead of the pre-scrubber sprayers in the EGR circuit, it can be used to gain a number of advantages. If connected to a conventional waste heat recovery system, for example, waste heat recovery becomes substantially more efficient – and is possible at significantly lower engine loads.
"EGR provides Tier III NOx compliance with a very compact footprint, but compliance itself is only part of the full potential," says John Pedersen, Business Manager, Boilers, Combustion & Heaters at Alfa Laval. "Working closely with MAN Diesel & Turbo to optimize the EGR technology, we saw additional opportunities through our expertise in marine boilers. The result is the Alfa Laval Aalborg EGR-HPE economizer, which paves the way for extraordinary energy and fuel savings."
"By moving the break point for waste heat recovery from a medium engine load down to a low load, the Aalborg EGR-HPE enables even slower steaming," says Mr. Pedersen. "That means fuel savings that quickly pay back the economizer, offset the EGR investment and lower CO2 emissions on top of the NOx reduction."
The source of all these benefits: the heat that would otherwise be lost during EGR. In the EGR process, around 30% of the exhaust gas is directed back into the engine, reducing the combustion temperature and thus the production of NOx. However, as only the 70% of the gas now reaches the traditional exhaust gas boiler after the turbocharger, waste heat recovery is reduced by 30%.
However, the Aalborg EGR-HPE is placed in-line before the EGR pre-scrubber spray jets that cool the exhaust gas. The economizer thus has access to much higher temperatures than traditional exhaust gas boilers. So, while the installation is light, compact and self-cleaning due to the high speed of gas flow, its application potential is enormous. This can be seen in the way it increases the efficiency of a conventional waste heat recovery system.
The Aalborg EGR-HPE is integrated with conventional waste heat recovery after the turbocharger by means of its steam drum, which is shared by the traditional exhaust gas boiler. With the output of the traditional economizer feeding into the shared drum, the Aalborg EGR-HPE produces extremely high-quality steam with a temperature of just above 400°C, bringing the waste heat recovery system to a much higher level of efficiency.
"The difference in steam quality has a direct effect on the performance of the steam turbine," says Mr. Pedersen. "Installation factors play a role, but a substantial increase in power generation can be expected."
Fuel savings through even slower steaming
Even more importantly, using the Aalborg EGR-HPE in an integrated system allows waste heat recovery to occur at lower main engine loads than possible with a traditional waste heat recovery system in Tier III operation. In other words, it creates the possibility for even slower steaming.
"The EGR economizer makes waste heat recovery beneficial at far lower engine loads, down to around 30%" says Mr. Pedersen. "This means that vessels can steam even slower, with huge fuel savings as a result. A vessel performing EGR and using the Aalborg EGR-HPE will be not only compliant with Tier III, but also substantially more fuel efficient."
Proven results at sea
The savings with the Aalborg EGR-HPE are not merely theoretical.
In a project supported by the Danish Energy-Technological Development and Demonstration Program (EUDP) and developed in cooperation with Aalborg University, the EGR boiler has been rigorously tested aboard the Maersk Cardiff, a 4,500 TEU containership delivered to Maersk Line in 2013.
"As a front-runner in the pursuit of green technologies, we were keen to see what the Aalborg EGR-HPE could do," says Ole Christensen, Senior Machinery Specialist at A.P. Moller-Maersk. "But while we were enthusiastic about the boiler's potential, we were also somewhat uncertain as how it would handle the physical realities of EGR. The temperatures are twice as high as those of traditional waste heat recovery, and the gas pressures are far greater."
Those concerns disappeared when the boiler was brought online with the Maersk Cardiff's two-stroke MAN B&W 6S80ME-C9 engine in November 2014. "Not only did the boiler survive," says Mr. Christensen, "the results we have seen during testing are very promising."
"By introducing the EGR boiler into the NOx equation, we've truly changed the balance," says Alfa Laval's Pedersen. "Suddenly EGR is not only a means of Tier III compliance, but also a means of radically improving the vessel's energy efficiency. And that makes it a very different sort of investment."
OCTOBER 19, 2915 — A new pressurized EGR (exhaust gas recirculation) economizer from Alfa Laval offers the potential for substantial fuel savings.
