NTSB: Speed a factor in a costly collision between a Z-drive tugboat and a VLCC

Written by Nick Blenkey
NTSB reports on strike on Hylebos Bridge fender system

The National Transportation Safety Board has issued its report on a January 22, 2023 incident in which the azimuthing stern drive, or Z-drive, tugboat Mark E Kuebler, owned by Bay-Houston Towing Co. and operated by G & H Towing Company, collided with the 319,287 dwt VLCC Nisalah, while the Saudi-owned tanker was transiting inbound in the Corpus Christi Ship Channel.

The tugboat’s hull was breached by the tanker’s propeller, which was also damaged in the collision. The collision resulted in nearly $7 million in damages. There were no injuries.

Damage to Z-drive tugboat

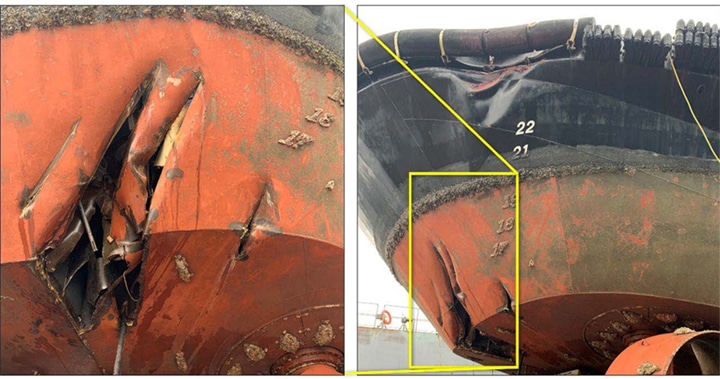

Damage to Mark E Kuebler stern hull and fendering system from the Nisalah propeller. (Source: NTSB)

Five tugboats were dispatched for harbor-assist operations for the Nisalah‘s arrival with the Mark E Kuebler assigned the starboard quarter position. As the tanker was moving through the channel at nearly 10 knots, the mate of the tugboat decided to turn the tugboat around and transit backward to get in the tug’s assigned position. During the turn, the tugboat fell back toward the stern of the tanker. The tugboat mate increased the speed and power to try to regain position, but was drawn in toward the tanker by hydrodynamic forces and the two collided. NTSB found the tugboat had insufficient reserve power to counteract the hydrodynamic forces due to the transit speed of the vessels.

As the tugboat attempted to move into position, its speed increased to 11.6 knots—just 1.4 knots less than its maximum rated ahead speed. Higher speed reduces the amount of reserve propulsion power available to the operator.

Following the collision, the tugboat’s operating company instituted a policy limiting stern-first landings of tugboats on assisted vessels to speeds of 7 knots or less.

The full NTSB report spells out the lessons learned

LESSONS LEARNED

Hydrodynamic forces between vessels in a channel

As a large ship moves through a channel, a low-pressure suction is particularly strong on the vessel’s quarters near the inlet side of the propeller, and hydrodynamic forces increase exponentially with the vessel’s speed. Therefore, a small vessel operating near a larger vessel must maintain a safe operating distance or have sufficient reserve power to counteract the hydrodynamic forces to avoid being pulled into the other vessel and risking collision. If a small vessel must operate near a larger vessel—such as a tugboat conducting harbor-assist operations—the operator of the smaller vessel should be aware of the hazards caused by hydrodynamic forces and, if necessary, maintain a safe distance until the larger vessel slows and the hydrodynamic forces are reduced.

Speed during harbor-assist maneuvers

Owners and operators of Z-drive tugboats that perform harbor-assist operations should set speed limits for advanced maneuvers such as stern-first approaches. These limits may vary for different classes of tugboats based on design. Tugboat operators should communicate these limits to ship masters or pilots in command of the vessels that they are assisting before engaging in these maneuvers.

  • Read the full NTSB report on the Z-drive tug collision HERE
