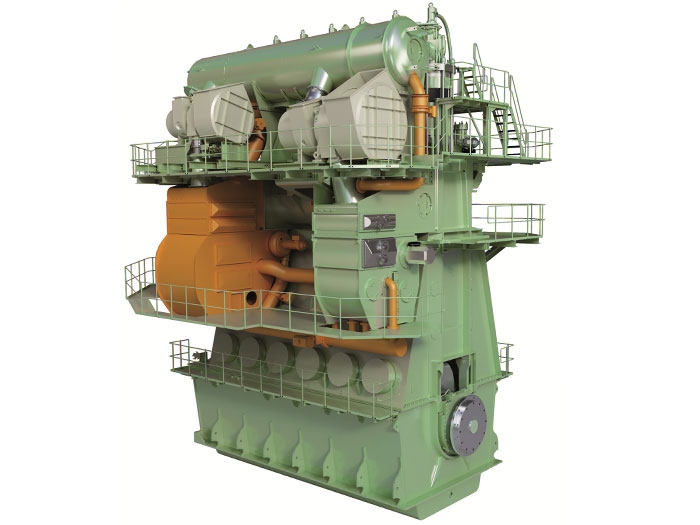

APRIL 5, 2016 – Hyundai’s Ship Building Division (HHI-SBD) has finalized a contract for two Suezmax tankers for Turkish shipowner Ditas Shipping. The 158,000 cu.m crude-oil tankers will each be powered by individual MAN B&W 6G70ME-C9.5 two-stroke main-engines with integrated exhaust gas recirculation (EGR) systems.
While there are already IMO Tier III-compliant vessels with EGR systems in service, the Ditas Shipping newbuilds will be the first vessels with keels laid after January 1, 2016 to be officially certified as complying with Tier III emission restrictions within existing North American NOx Emission Control Areas (NECAs) and the United States Caribbean Sea NECA.
EGR is a NOx emissions-control technology that works by recirculating a portion of an engine’s exhaust gas back to the engine cylinders. MAN Diesel & Turbo originally developed, designed, and manufactured the first EGR system for a two-stroke marine diesel engine for operation on a container vessel in service in 2010.
A part of the exhaust gas is drawn through a scrubber, cooler, and water mist catcher by suction created from an electrically driven, specially designed blower. The blower raises the pressure of the exhaust gas, which is then mixed with the charge air via a unique charge air pipe, before entering the main-engine coolers.
Within the scrubber, the exhaust gas is washed with water, which consequently becomes acidic depending on the sulfur from the fuel in the exhaust gas dissolving in the water. Sodium hydroxide dosing is therefore required to neutralize the acidic scrubber water. In addition, the scrubber washes out particulate matter (PM) that becomes suspended in the scrubber water, and it is therefore necessary to have a water treatment system (WTS) to remove PM from the scrubber water, and discharge the PM as concentrated sludge into the sludge tank on the vessel. The WTS is designed for cleaning the scrubber water to such an extent that it can be discharged into open sea.
A fully automated control system provides for easy operation for the ship’s crew and correct and rapid reactions to engine load variations.
Following efficiency optimisation trends in the market, MAN Diesel & Turbo thoroughly evaluated the possibility of using even larger propellers and thereby engines with even lower speeds for the propulsion of tankers and bulk carriers.
Such vessels may be more compatible with propellers with larger diameters than designs so far used, and therefore able to facilitate higher efficiencies following adaptation of the aft-hull design to accommodate a larger propeller. It is estimated that such updated aft-ship designs with the G-series of engines offer potential fuel-consumption savings of some 4-7%, with a similar reduction in CO2 emissions.
Simultaneously, the engine itself can achieve a high thermal efficiency using the latest engine process parameters and design features.
