Chem tanker to have HyProp ECO system

Written by Nick Blenkey
image description

NOVEMBER 4, 2016 — A 7,500 dwt chemical tanker is to have a complete propulsion package from MAN Diesel & Turbo with a world-first full HyProp ECO system with PTO/PTH.

The propulsion package also features a MAN 6L32/44CR common-rail main engine, an MAN Alpha Kappel propeller and an MAN SCR (Selective Catalytic Reduction) system capable of operating on MGO, MDO and HFO.

The tanker has been ordered by IÇDAŞ Çelik Enerji Tersane Ve Ulaşim Sanayi AŞ in Turkey and is scheduled for delivery in September 2017.

Lex Nijsen, Head of Four-Stroke Marine, MAN Diesel & Turbo, said: “For many applications, a hybrid propulsion system is a good choice, especially when flexibility, performance and efficiency are prized. In a challenging market, we are embracing innovative technology as a means to grow. HyProp ECO is a flexible and powerful system with low first-costs that offers a real alternative to a purely mechanical propulsion solution, while maintaining its benefits. We are proud that IÇDAŞ chose our high-efficiency technology package for their newbuilding.”

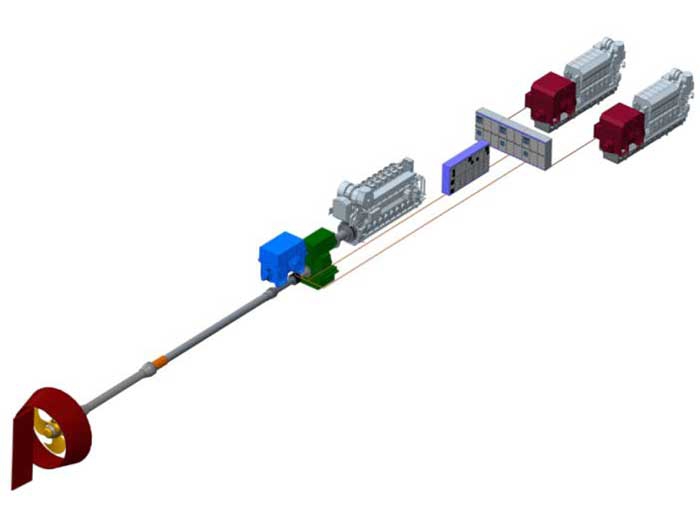

HyProp ECO is a system solution that combines a diesel engine with a frequency-converter-driven shaft-alternator/motor and features multiple operational modes.

Jointly developed by variable AC drive manufacturer Vacon and MAN Diesel & Turbo, the system combines the advantages of a bi-directional operating frequency converter for the shaft machine with a high-efficiency CP propeller plant.

HyProp ECO is also open for shore connection and the integration of energy storage devices / batteries.

Vacon is a global manufacturer of variable-speed AC drive systems. Its NXC drives have a proven track record in marine applications with reliable performance.

HyProp ECO’s major advantage is that it enables the use of frequency converters of just 30% of the installed alternator/motor power up to full PTO power, according the ship’s individual demand. This solution enables the propeller, as well as the main engine, to run on variable speed (Combinator Curve) at slow ship speeds and still use the PTO as the most economic source of electric-power generation on board. As a bypass around the converter unit is installed, the system suffers no electrical losses when the converter is not in operation. Another advantage is that the total installed genset power can be kept low as the HyProp converter allows a smooth start of the shaft machine in PTH-mode without a big voltage drop at the main switchboard. The result is a flexible and powerful system with low first-costs, compared to a conventional-frequency converter solution.


Lower propeller and engine speed saves fuel: operating the propeller as well as the diesel engine with reduced speed saves fuel oil. The typical PD-n diagram and engine operation map here illustrate that reduced speed saves a significant amount of propulsion power as well as fuel oil and emissions when the ship is sailing at slower speeds
