New versatile tug design from Robert Allan, Sanmar

Written by Marine Log Staff
image description

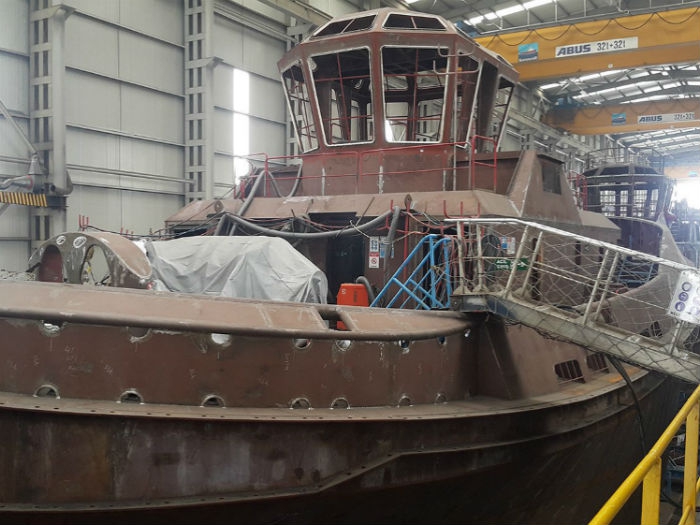

70 tonne BP TRAktor 2500-SX Under Production at Sanmar’s Tuzla Shipyard

NOVEMBER 11, 2017—Naval architect Robert Allan Ltd., have completed a new 25 m harbor tug design for Turkey’s Sanmar Shipyards that can be outfitted as either a tractor tug with aft working deck or Rotortug with both fore and aft working decks.

The versatile design—which can have either of two class designations, TRAktor 2500-SX or ART 60-25SX—was developed in close cooperation with Sanmar to achieve production efficiencies and more standardization. Many components are identical to those used by the shipbuilder on its other production models. And the propulsion equipment selected for the design is the same as fitted in other Sanmar class vessels allowing equipment orders to be made in bulk, thus saving cost and allowing flexibility to allocate equipment to the vessel where it is needed most, ensuring the fastest possible delivery to clients.

The hull and appendage alternatives were extensively model tested at the Vienna Model Basin and also analyzed in house at Vancouver-based Robert Allan Ltd. using Computational Fluid Dynamics (CFD) to obtain an optimal balance between controllability, maneuverability, fuel efficiency, and roll dampening. The stern of the hull features the simple but extremely effective StRAke stabilizers developed by Voith and Robert Allan Ltd., which improve tractor tug directional stability allowing for a reduced size skeg and thereby improving maneuverability and fuel efficiency.

Tractor tug versions of this new design are available with various bollard pulls up to 70 tonnes. Rotortug versions are available with up to 60 tonnes bollard pull.

After securing an order to construct a 60-tonne tractor tug version for the Port of Taranaki in New Zealand earlier this year, Sanmar is now building a trio of 70 tonne bollard pull tractor versions in new series called the Deliçay Series. The 70 tonne bollard pull vessels will feature RR US 255 drives. The first of the three is set for delivery in February 2018.
