New oceanographic research vessel launched for VIMS

Written by Marine Log Staff
image description

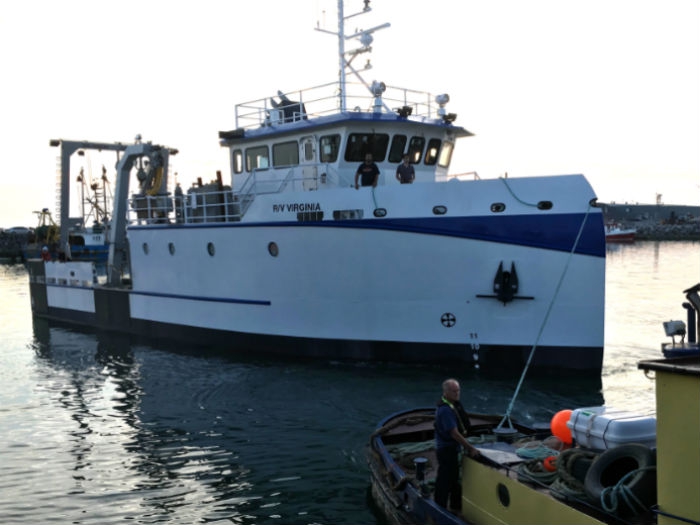

AUGUST 21, 2018 —The 93 ft x 28 ft research vessel R/V Virginia, for the Virginia Institute of Marine Science (VIMS), was launched last week after 18 months of construction by Meridien Maritime Reparation, Matane, Quebec.

The research vessel was designed by JMS Naval Architects, Mystic, CT, under a competitively awarded a contract from the VIMS. JMS had to provide concept through contract-level design, shipyard bid support, and on-site Owner’s Representative/Construction Oversight services including tests and sea trials.

The primary mission of the VIMS’s fleet of research vessels is to provide inshore and offshore work platforms for the support of fisheries related oceanographic research projects. The R/V Virginia is capable of conducting fisheries assessments of a much greater capacity, in deeper waters, and with a larger science complement. In addition, the R/V Virginia will greatly expand VIMS’s capability to perform general oceanographic research in the Chesapeake Bay and the mid-Atlantic near coastal waters. The state-of-the-art research vessel offers enormous capability in a small package that is also economic to build and operate.

JMS designed the vessel to operate as an uninspected research vessel with an ABS Loadline. The design offers flexibility in science outfitting allowing for high utilization and affordable operating day rates. The vessel is easily adaptable to evolving scientific research areas such as offshore oil & gas exploration surveys, wind energy development surveys, environmental impact studies, and the servicing of ocean observing systems.

Main propulsion is provided by two 660 BHP Tier III diesel engines coupled to a two–in/one-out marine gear driving a controllable pitch propeller shrouded within a nozzle. This unique arrangement will provide the capability to operate the vessel efficiently on a single propulsion engine when on station or during slow speed transits. This will reduce overall engine hours and thus reduce the cost of operation and improve fuel efficiency, minimizing its environmental footprint. The gearbox also powers a very robust hydraulic system required to support the suite of deep-water trawl winches and load handling equipment. The electrical system is comprised of a pair of 99 ekW generators which provide redundant capability or can be run in parallel during peak power demands. LED lighting will reduce both power consumption and heat emitted into the accommodation spaces.

A high performance rudder package and 250 hp omnidirectional flush mounted grid bow thruster provide excellent maneuverability. The vessel’s capabilities are further enhanced by a state-of-the-art dynamic positioning system for station keeping.

Oceanographic outfitting includes very large Wet and Dry Labs that have been designed for maximum flexibility to accommodate the many types of science that the vessel is expected to conduct. The 1,000 square foot main working deck allows for a 20-long ton science payload and provides a significant working platform for conducting fishing operations, over-the-side sampling and coring activities. There is also ample room and services to install a 20-foot science van for specialized science missions. The new research vessel will take advantage of the latest technology through an extensive array of acoustic instrumentation for the gathering and processing of data in support of fisheries research, oceanography and geophysical sciences.

The aft deck is fitted with a stern A-Frame with an 8,000 lb safe working load for over the stern lifting operations and a side mounted J-Frame with an 4,000 lb safe working load for conducting CTD operations. The principal fishing arrangement consists of a pair of trawl net reels and a pair of trawl winches with 4,000 lb linear pull with 355 fathoms of 3/8 in wire to support small mesh (200 mm net) bottom trawl surveys inshore and nearshore waters. An electric CTD (Conductivity, Temperature, and Depth) winch with 2,000 m of 0.322 in wire will also be fitted for operation from the side mounted J-Frame. There is also a knuckle boom deck crane with a 2,240 lbs capacity at a 33-foot reach to support load handling operations.
