MAN Diesel and Turbo to power Van Oord dredge newbuilds

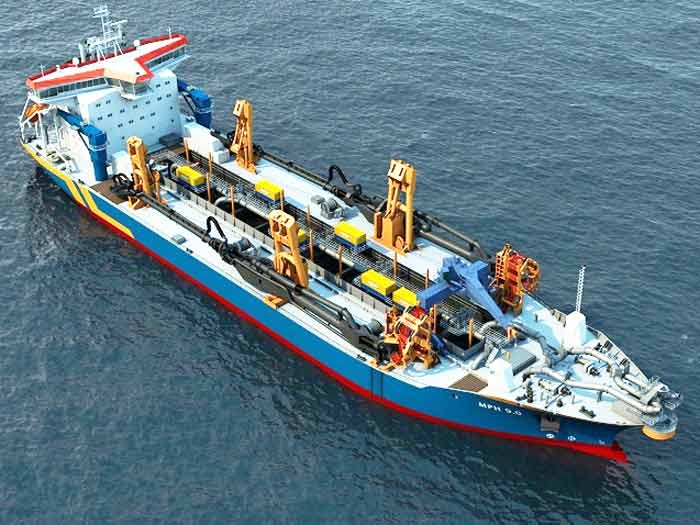

Newbuild trailin suction hopper dredge

AUGUST 6, 2015 — Rotterdam headquartered Van Oord has placed an order for two trailing-suction hopper dredges at  the CNN LaNaval Shipyard in Sestao, Spain, with delivery dates scheduled for 2017.

The order is part of Van Oord’s continuous investment program.

The new dredges will have a hopper capacity of approximately 17,000 cu.m, a length of 158 m and a width of 36 m. Each  will have accommodations for 38 persons.

They will be equipped with two suction pipes with submerged e-driven dredge pumps, two shore-discharge dredge pumps, six bottom doors and a total installed power of of 23,680 kW.

Each vessel will feature a complete MAN Diesel & Turbo propulsion package with:

• MAN 6L48/60CR engines
• RENK gearboxes with PTO
• MAN Alpha CP Propeller systems
• AHT (Alpha High Thrust) Propeller nozzles
• MAN Alpha AT3000 propulsion-control systems.

Special attention was paid to the energy-efficiency of the vessels. The design includes several aspects which result in substantial reductions in fuel consumption and consequently a fall in CO2 emissions. The vessels will be equipped with innovative and sustainable systems and will both obtain a Green Passport and Clean Ship Notation.

The 48/60CR engine type is one of the most successful engine types used in dredging applications. Currently, MAN Diesel & Turbo has 14  of these engines on order for installation aboard cutter- and hopper-dredge newbuildings for customers in Benelux and China. All engines will be built at MAN’’s main facility in Augsburg, Germany.

The engines are equipped with key, in-house-developed technologies to optimize their economic and ecological performance, including

• high-efficiency, TCA-type, exhaust-gas turbochargers
• advanced, electronic fuel-injection system
• electronic hardware and software for engine control, monitoring and diagnosis,
• SaCoSone and CoCoS EDS.

The MAN Alpha propeller and aft-ship package supply for each Van Oord vessel consists of a complete twin-screw propeller, nozzle and shaft system, including Alphatronic 3000 propulsion controls.

The CP propellers are driven via shaft lines. Each shaft includes a disc brake and locking system. The ducted propellers are headbox-mounted AHT nozzles. A high degree of service friendliness is ensured since the propeller-hub mechanism can be inspected and dismantled from aft. Additionally, by means of intermediate plates between propeller blade flanges and propeller blades, the propeller blades are underwater replacement  friendly – avoiding the need for docking should such a scenario arise.

The twin-screw Alphatronic 3000 system will control the two propulsion lines with engine, reduction gear and CP propeller via main-bridge control stations, engine-room control stations and an interface to joystick control for dynamic-positioning requirements.
