First RApport 1600-SX harbor tug completes trials

Written by Nick Blenkey
image description

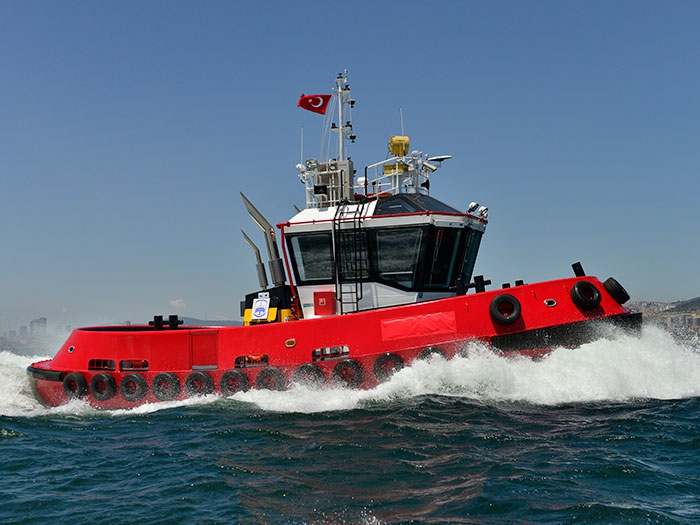

RApport 1600-SX is designed exclusively for Sanmar Shipyards

JUNE 25, 2018 — Vancouver, B.C., Canada, based Robert Allan Ltd. (RAL) reports that , the first RApport 1600-SX tug, was run through its paces by her builder, Turkey’s Sanmar Shipyards, last month and showed excellent performance in all respects.

Designed exclusively for Sanmar Shipyards, the RApport 1600-SX is a safe, robust, and seaworthy tug ideal for general harbor duties.

The new steel twin screw tug is designed for high performance at a competitive cost. It has increased beam for better stability and good visibility in all directions from the compact wheelhouse.

Conventional twin screw propulsion with twin nozzles and four rudders provide a bollard pull of 21 tonnes and a top speed of 11.5 knots with good maneuverability.

The particulars of the RApport 1600-SX are:
Length overall: 16.3 m
Breadth, molded: 7.4 m
Depth, molded: 3.3 m
Draft, navigational: 2.7 m
Fuel oil: 15 cu.m
Potable water: 2 cu.m
Crew: 3 persons
Speed: 11.5 knots
Bollard Pull: 21 tonnes
Class: Bureau Veritas

The propulsion system consists of twin 650 kW Caterpillar C18 engines, Reintjes 5.5:1 reverse/reduction gears, 120 mm stainless steel shafts, and 1450 mm 5-bladed propellers in #37 nozzles. Twin high aspect ratio rudders are fitted behind each nozzle. The fuel system is a simple 2-tank arrangement with wing tanks port and starboard, centrally located to have minimal effect on trim as they are drawn down.

The engines are fitted with dry exhausts with polished stainless steel tail pipes.

With large aft facing windows in the wheelhouse and low profile funnels the towing equipment and most of the aft deck is visible to the operator. A machinery casing located between the funnels provides a convenient removal route for large items of machinery including an entire main engine.

A 25 tonne towhook is fitted on the aft deck for general towing duties with an electric or hydraulic towing winch available as options. Double pipe bollards are fitted in the bulwarks for mooring, two forward and two aft, and stainless steel mooring rings in the bulwarks. Fendering is provided to suit each client’s requirements with the standard being 250 mm “D” fenders at the sheer and vertical “W” fenders around the bow. A push knee with a 300 x 300 mm “D” fender can be fitted on the bow if needed. For line boat service a standard pipe rope guard is available to protect the house and the mast can be ordered as a folding type. Heavy duty lifting lugs for a 3-point hoisting tackle are standard equipment on every boat.

There are overnight accommodations in the forecastle for a crew of three, including two cabins, pantry, mess, washroom with shower.
